Granulator

CLICK TO DOWNLOAD THE BROCHURE FOLLOW US THROUGH VIDEOS

GM series Granulator designed for shredding waste plastic,cables,rubbers,electric waste etc,normally it been put after the Single Shaft Shredder or Two Shafts Shredder as the secondary shredder. It is mainly composed of rotor knives,counter knives,shredding chamber,machinery supports,feeding conveyor,motor,gearbox and electric system. Hard metals can not enter the shredding chamber when it is working.

Get Quote

Main Features

▶ Larger cutting chamber and less material bridging possibility

▶ Underneath screen for uniform particle size

▶ More knives for easier grabbing of material

▶ Double dust and water proof protects bearings and gears

▶ Maximized cutter arrangement for better shredding result

▶ Repairable blades and easy maintenance

▶ PLC with monitor control for to and fro rotation

Shaft Speed460-580rpm

Shredding Chamber600-2500mm

Motor Power22 -(132+132)kw

Exclusive selling points

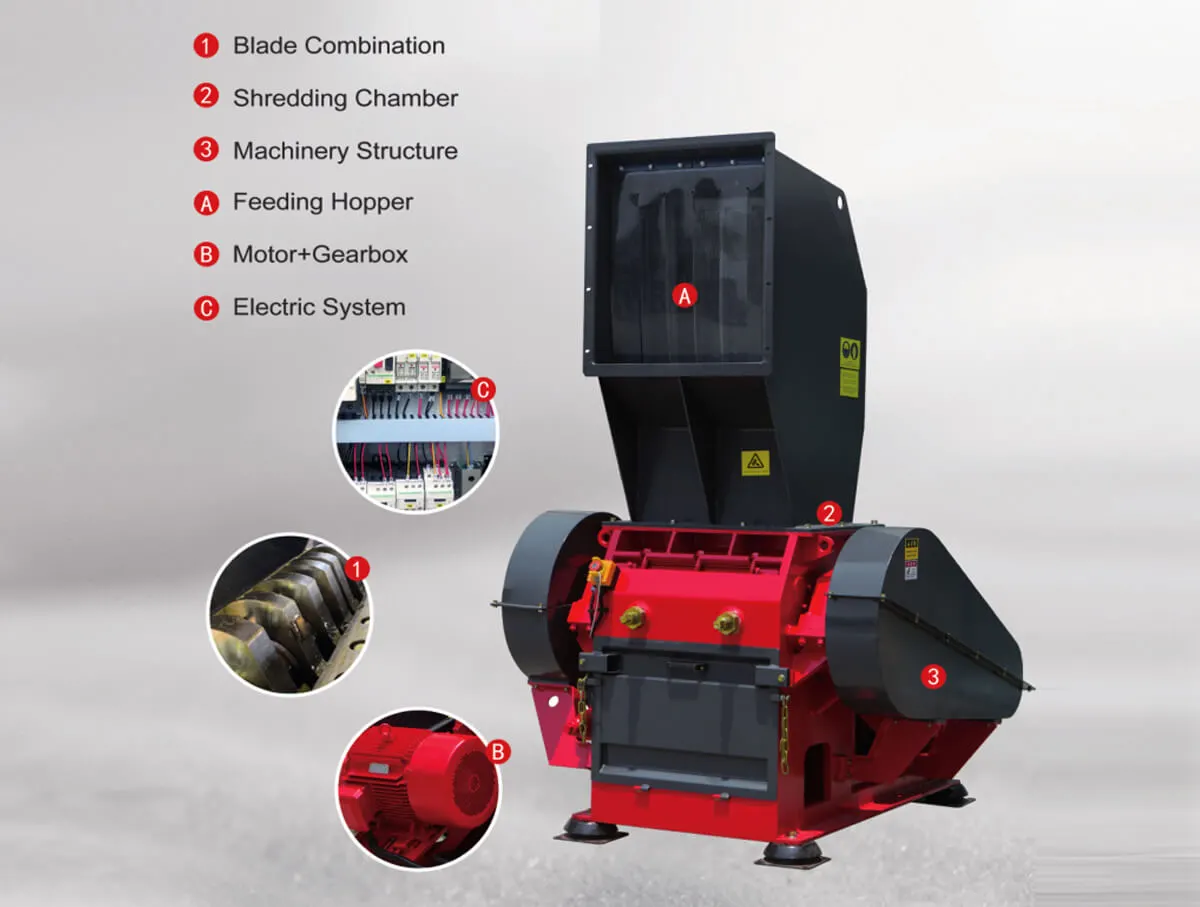

Granulator

01Blade Combination
Rotor Knives material Alloy AISID-2,Hardness can meet HRC59.
Rotor Knives can be repaired,which increases the service life of the knives.
The counter knives can be adjusted to maintain the proper distance with the rotor knives.
We have V type rotor,VB type rotor,C type rotor,CS type rotor and S type rotor design.
02Bearing Base
High quality spherical bearings are isolated from the shredding chamber to prevent materials go into the oil seal.
The whole machined bearing housing ensures the service life of the bearing.
Adopting the high-strength heavy-duty self-aligning bearings can withstand heavy-duty impact.
03Machinery Structure
The machine structure is integrally processed and bored by a high-precision CNC machining center to ensure that the equipment can run smoothly under high load for a long time and prolong the service life of the transmission parts.
The design of the structure opening is automatic type, the screw drive is safe and reliable to ensure that the structure will not fall when opening,and the equipment mechanism is firm.
04Electric System
Linkage control, controlled by PLC, and can adjust the feeding amount auto matically.
European standard emergency stop, with high sensitivity.
Lock function when machine under maintenance can ensure safety.

05Screen
Convenient change of the screen.
06Pulley
Cast pulley,long service life.
07Convenient Plug
Split plug, safe and reliable.
08Structure Lifting Mechanism
European standard screw,long service life.

Non-metallic Material

Plastic Parts of Vehicle
HDPE Plastic Bottle
Rubber
Engine Oil Bottle
Leather
Plastic Bag
Plastic Film
Scrap Textiles

Crushing Effect

Scrap Fabric
HDPE Plastic Bottle
Scrap Hard Drives
Agricultural Film Ground Film
Rubber Head Material
Ton Bag

Technical Specification

Granulator Technical Specification
MODEL	GM-600S	GM-800S	GM-800L	GM-1000S	GM-1200S	GM-1600S	GM-2500S
Motor Power(kW)	22	30	37	55	75	132	132+132
Machine Size(mm)	1438x1177x2197	1440x1377x2197	1637x1450x2272	1858x1648x2071	2155x2202x3141	2470x2600x3373	2881x3942x4397
Shredding Chamber Length(mm)	620	820	820	1020	1220	1600	2500
Shaft Diameter(mm)	Φ320	Φ320	Φ420	Φ420	Φ520	Φ660	Φ800
Shaft Speed (rpm)	580	580	580	580	520	520	460
Counter Knives (pcs)	2	2	2	4	4+2	4+2	4+2
Rotor Knives (pcs)	6	6	6	6	10	28	45
Screen Quantity(pcs)	1	1	1	1	1	1	1
Screen Mesh Size(mm)	Φ12	Φ12	Φ12	Φ12	Φ12	Φ20	Φ20

: “
